Name 名稱

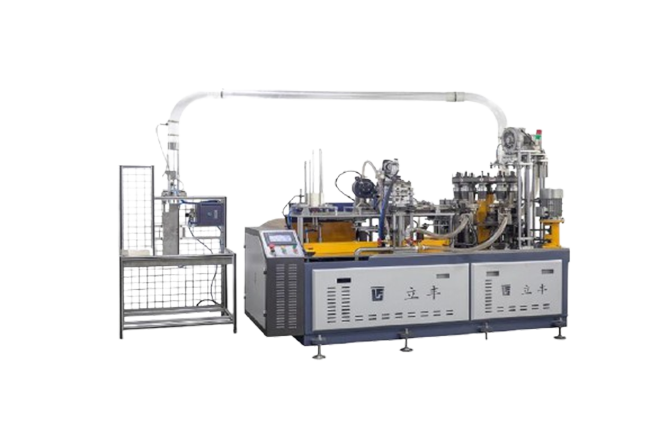

Middle Speed Paper cup Machine

HS Code

8441309000

Model 型號

LF-110

The machine includes: Finished cup Collect System設備包含收杯設備

Paper cup Size尺寸范圍

A=70mm-95mm

B=48mm-70mm

C=60mm-135mm

D=5mm-10mm

Raw Material 材料要求

One-side or two-side PE coated paper(Singe PE or Double PE coated paper)
單雙淋膜紙

Speed速度

100-120pcs/min

Speed of 20 hours stable running per day
機器可以每天運行20小時

Suitable paper weight材料厚度

190-350gsm

Voltage supply電壓支持

380v50hz 3-phase
*If user’s voltage supply is different, please inform us in advance.

Working Air Source供氣要求

Air pressure 0.5-0.8Mpa, 0.4m3/min
User should buy Air Compressor客戶需要購買空壓機

General power總功率

16kw

Net weight 凈重

2500kgs

Measurement (mm)尺寸

2500*1100*1500

Cup Side Sealing 超聲波

EVERGREEN Ultrasonic

We can customize machine and mold according to customer’s requirement.
部分要求可以根據客戶情況定制

電機Motor

主電機Main motor

China ZHIBAO

Knurling/ curling motor

China ZHIBAO

配置
Configuration

導軌guide rail

Taiwan HIWIN

直線光軸Straight line bearing

JAPAN NSK

刀模模具、滾花
cutting mold and knurling

Cr12MoV Quenching

凸輪open cam

20CrMoTi
Carburizing and quenching

齒輪 gear

20CrMoTi
Carburizing and quenching

軸承bearing

JAPAN NSK

轉盤 Turnplate

Aluminium alloy 5A02

電器
Electric elements

顯示屏TOUCH SCREEN

臺灣臺達

可編程控制器PLC

臺灣臺達

超聲波 ULTRASONIC

EVERGREEN Ultrasonic

熱風器 Hot air heater

China brand

編碼器 encoder

變頻器Frequency converter

臺灣臺達

Contactor (switch )

Sensor

日本 PANASONIC(JAPAN)
